Features

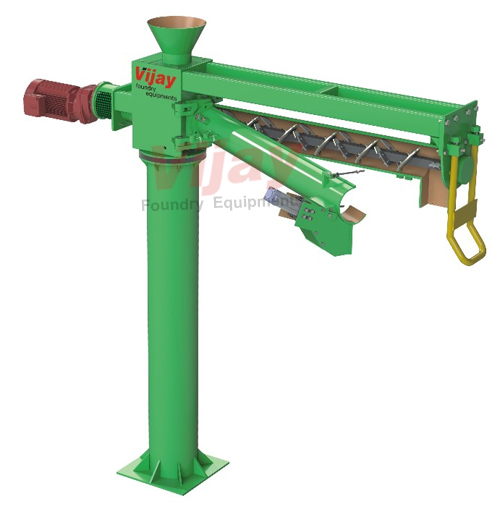

- We supplied in both pivotal or articulated from with the latter Featuring either a screw arm or belt arm.
- Each product in our sand mixer range has been Designed with an easy to open split tube design and removable mixing sjaft can be removed quickly
- Half - moon blader tipped with tungsten carbide.
- Leakage Free magnet coupled pump for the catalyst.
- Fully automated PLC controlled system for error free operation.
| MODEL | CM-005VE | CM-008VE | CM-010VE |
| Batch Capacity (TPH) | 5 TO 8 | 10 TO 12 | 15 TO 20 |
| Mixer motor (HP) | 7.5 | 10 | 15 |
| Hardener pump (HP) | 0.5 | 0.5 | 0.5 |
| Resin pump (HP) | 0.5 | 0.5 | 0.5 |
