We are Manufacturer, Supplier, Exporter of High Pressure Moulding Machine/Line (HPML). Our setup is situated in Kolhapur, Maharashtra, India. Majorly we serve customers from African, Gulf countries and all over India.

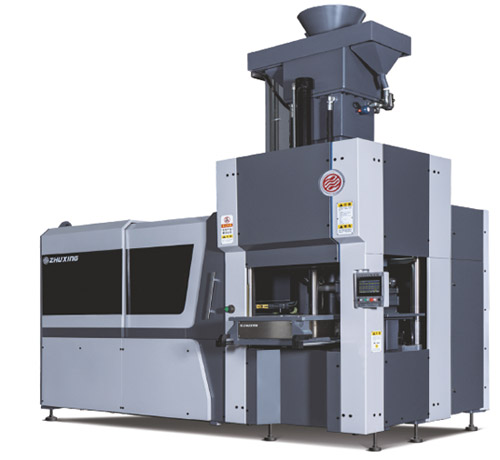

High Pressure Moulding Machine/Line (HPML)
Overviews
• Top & Bottom Aeration Sand Filling Eliminates Insufficient Compaction On Shadow Surfaces.
• Sliding Core Setting
• Pit-Free Installation
Technical Features
- Fast operation, with speeds reaching up to 100 moulds per hour.
- Slide out the flask for safer core insertion.
- Adjustable and controllable ejection options, allowing for non-ejection or the insertion of smaller cores to increase speed.
- No need for pit excavation.
- Fully sealed to prevent air leakage and sand spillage (the sand shooting bucket and nozzle are rigidly connected without any gaps).
- The sand shooting bucket remains unblocked.
- The machine remains unaffected even when iron pieces or debris are present in the moulding sand.
- There is no scattered sand on the upper box surface.

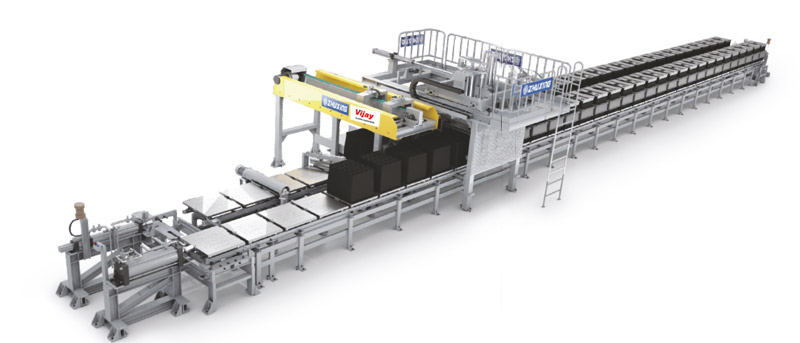

Flaskless Moulding Line
Technical Features
- Forming an automated production line with moulding machines, featuring automatic box closing, automatic iron pressing, online operation, and sand-free ground.
- Accurate positioning with hydraulic buffering.
- Machine legs secured with bolts, allowing easy leveling adjustment after foundation settlement.

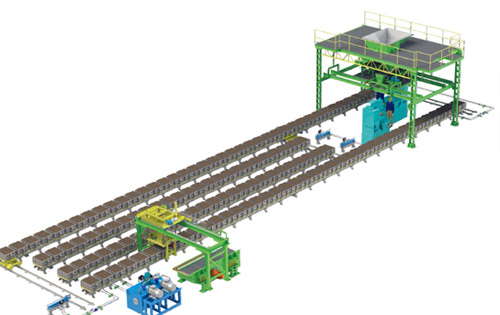

Mould Handling System
System Modules
- Advanced Hydraulic System
- Automated Electrical Control System
- Integrated Safety & Environmental Controls
- Punch-Out System
- Motorized Transport Trolley
- Advanced Locking System
- Mould Box and Car
Technical Features
- Customized line layout.
- High-speed hydraulic push and cushion system for smooth flask & pallet handling.
- Database (SDM) – intelligent monitoring and operational control.
- Precise control of mold compactness and hardness.
- High dimensional accuracy with minimal draft requirement.
- Repeatable, stable molding quality batch after batch.
- Reduced labor dependency through advanced robotic handling.
